Rotocone Vacuum And Tray Dryer

Rotocone vacuum and tray dryer is a type of industrial drying equipment used to dry a variety of materials, such as powders, granules, and pastes. The dryer operates under vacuum conditions, allowing for low-temperature drying and preventing the material from oxidizing and deteriorating. It is composed of a rotating cone-shaped vessel that holds the material, and a series of trays that provide additional drying surface area. The dryer uses hot air or steam to evaporate moisture from the material, and the vacuum pressure removes the moisture from the drying chamber. The Rotocone vacuum and tray dryer is commonly used in the pharmaceutical, chemical, and food industries.





Product Image (GMP Model )

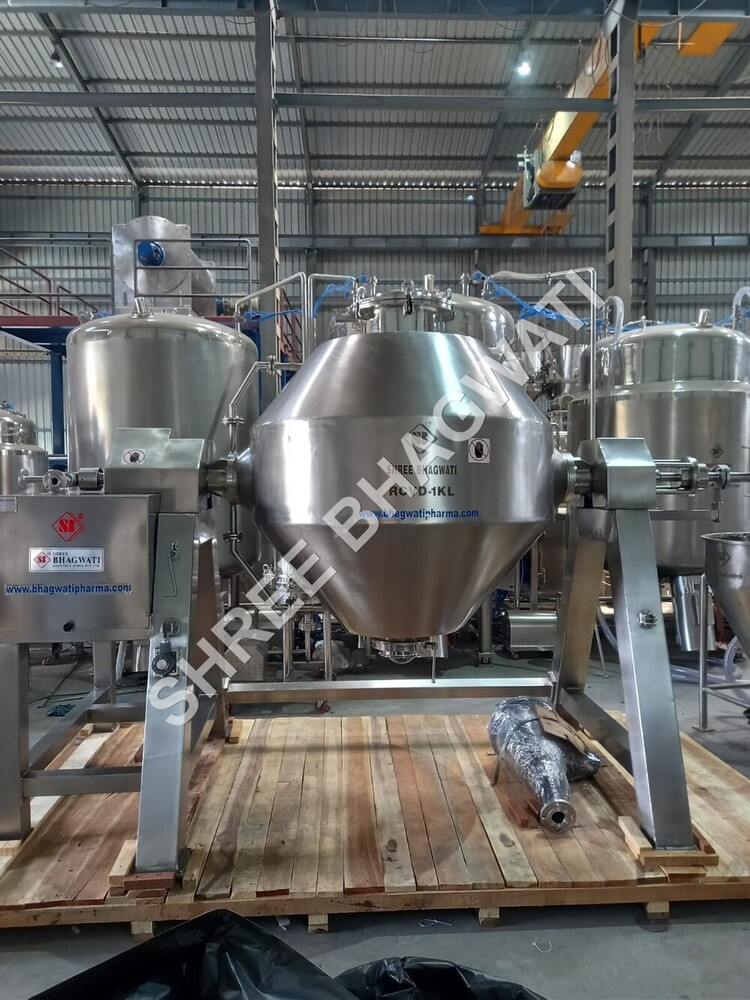

Rotocone Vacuum Dryer - RCVD

ROTOCONE VACUUM DRYER, to some extent, replacing the agitated rotary Vacuum Dryer. It has two opposing jacketed cones on a common jacketed short cylindrical base.When the cones are in a vertical position the dryer can be rapidly discharged.The unit is provided with supporting trunnions running on suitable bearings

Product Image (VTD )

Vacuum Tray dryer

Price: 500000 INR
  • Material:stainless steal
  • Product Type:Other
  • Drive Type:Electric
  • Control System:PLC Control
  • Computerized:Yes
  • Voltage:as per customer required Watt (w)
  • Power Source:Electric
  • Heating System:Other
  • Delivery Time:10-12 Week
  • Supply Ability:30 Per Month
Product Image (TD )

tray dryer

Price: 500000 INR

We offer various types of tray dryers including Tray Dryer with Steam systems, Tray Dryer with Electrical Hot Air Heater base, Tray Drier suitable for Chemicals, Dye stuff, Pharmaceutical, Food Products, Colours with Mild Steel, Stainless Steel Tray Dryer is used for the best drying results in conventional process. Tray dryer with Hot air and Steam base supply with double walled cabinet with Single or Two doors as per customer demand. Hot Air Dryers two walls is filled with high density fibre glass wool insulation material to avoid heat transfer. Tray dryer Doors are provided with gaskets. Stainless steel trays are placed on the movable trolleys. Tray Dryer with Operating control panel board, process timer, Digital temperature controller cum indicator etc. Tray Dryer model available with different ranging from 6, 12, 24, 48, 96, 192 trays. Our models are most suitable for Pharmaceutical Tray Dryer, Tray Dryer for foods, Chemical Tray Dryer, Hot Air Tray Dryers, Steam Air Tray Dryer, Tray Dryer with Trolley, Tray Dryer for Ayurveda products, cosmetic products Tray Dryers, Tray Drier, Hot Air Tray Dryers are used to remove liquids or moisture from bulk solids, granules, powders, parts, continuous sheets or other liquids or powder, granules etc. Tray Dryers can be broken up into two main types: direct and indirect. Hot Air Direct dryers convectively heat a product through direct contact with heated air, gas or a combusted gas steam etc. product. Tray dryer Indirect dryers conductively heat a product through contact with a heated wall

Product Image (30)

Hot Air Tray Dryer

  • Delivery Time:8 Week
  • Supply Ability:30 Per Month
  • Product Type:Other
  • Drive Type:Electric
  • Material:Stainless steel
  • Computerized:Yes
  • Control System:PLC Control
  • Capacity:6-240 tray
  • Heating System:Other
  • Voltage:As per customer requirement Watt (w)
