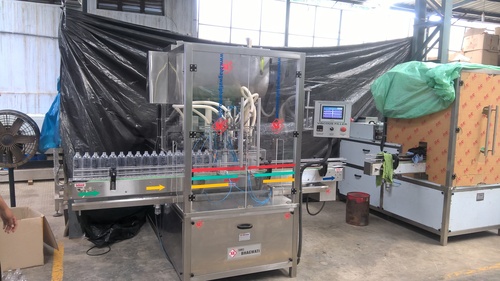

Ghee Filling Machine

Product Description

Technical Specifications:

Power : 440 Volts / 3 Phases / 50 Hz

Air Pressure : 4 Kg

Fill Volume : 100gm to 1000gm

Output  : Up to 20-28 Bottle / Minute -depend on fill volume

Automatic Viscous Filling Machine:

SERVO + PLC based automatic viscous Filling machine online automatically with:

Servo Base Piston operating

Volume Adjustable from PLC NO Tools required

Multi Dose filling arrangement on request

Multi head dozers

Diving nozzles.

Shut off type nozzle for anti-drip.

SS conveyor  with stop-release line automation

no-bottle-no- fill controls,

CIP mode for rinsing of product cylinders, valves and nozzles.

Ideally suited to fill viscous products like Ghee & lotions.

Adjustable guide rails on conveyor to accommodate different diameters of bottles/cans.

SS hopper.

Pneumatic cylinders for Bottle Stopper.

Adjustable diving depth depending on size of bottles/cans.

PLC + Touch Screen controlled panel for electrical controls.

Production counter on PLC.

PLC settings for varied volumes.

Volume adjustment facility for different pack volumes.

Height adjustment facility for different bottle sizes.

Optical/Proximity sensors to sense arrival of bottles to filling station.

Stoppers to accurately stop bottles/cans under the filling nozzle.

Accuracy  +0.25% to 0.5%

All contact parts SS316 and non contact parts SS304

Technical Specifications of Viscous Filling Machine

Machine Internationally proven high quality pneumatically + servo PLC operated piston filler with the latest technology  fixed product cylinder (syringe) attached to pneumatic cylinder in one line, giving better life to filling syringe seals and hence no leakages which are observed in mechanically driven machines with oscillating cylinders.
